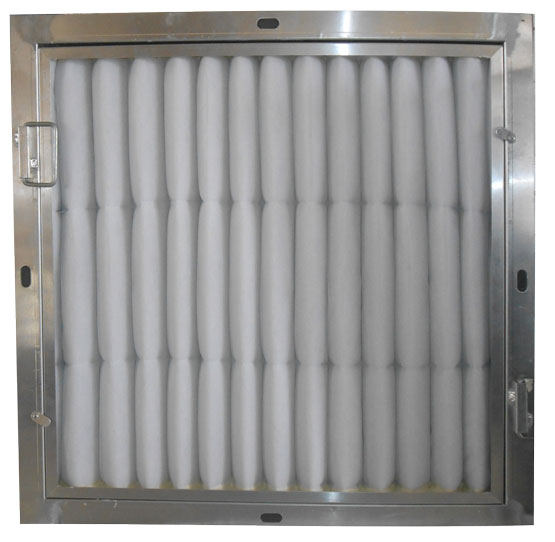

RS FINE FILTER
RS FINE FILTER
RS DISPOSABLE PANEL FILTERS – DP – 18
RS DISPOSABLE PANEL FILTERS – DP – 18
RS AIRRFILTEC PVT LTD. Provides high-efficiency ASHRAE air filtration performance in a compact, supported media design. Fine Filters are designed for use as secondary filters in areas such as a Pharmaceuticals, Laboratories and Hospitals or as Pre-Filter to HEPA filters. The full surface area of the filter media is always available, even after prolonged use and heavy dust loading. The media is housed in a rigid frame with an optional header, providing a sturdy construction that is easy to install in front, rear or side access systems.
|
Application: |
|
|
Secondary filter for air conditioning / Clean Room system |
|
|
Type: |
Pleated synthetic fiber media |
|
Case: |
Galvanized steel / Aluminum / Stainless Steel |
|
Media: |
Imported non-woven synthetic synthetic. |
|
EN 779:2002 efficiency: |
F5 / F9 |
|
Eurovent efficiency: |
EU5 / EU9 |
|
ISO 16890 : |
ePM10-ePM 1 |
|
Average arrestance |
90 to 95 % |
|
Final pressure drop: |
150 / 250 Pa. |
|
Rated Face Velocity (m/s) |
2.5 |
|
Temperature: |
80°C maximum in continuous service. |
|
Max. Relative Humidity |
100% RH |
