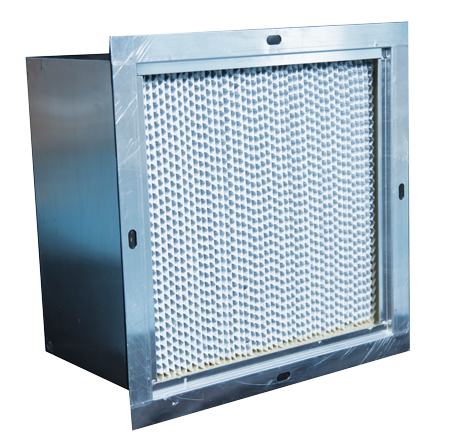

RS HEPA Deep Pleat

RS HEPA Deep Pleat

RS Deep Pleat HEPA filters are manufactured from continuous length of superior quality micro glass fiber paper media available H13-H14 grades. The filter media is moisture resistant and fire retardant. Anti-microbial treated papers are also available for special applications. The uniform and closed pleat filter pack grants a high crossing surface to hold the very fine dusts.
The standard frame construction includes fire retardant Wood Particle Board, Galvanized steel and anodized aluminium.

High temperature versions are constructed with Stainless steel frames.


  • Type: Deep pleat HEPA Filter
  • Case: Galvanized steel/Alu./SS
  • Media:Imported Micro Fiber glass
  • Separator: Corrugated Aluminum
  • Sealant: Polyurethane
  • Gasket: Neoprene Rubber/PU Foam
  • EN 1822 efficiency: H12/H13/H14
  • MPPS efficiency:H12≥97.5%,H13≥99.95%,H14≥99.995%
  • Final pressure drop:500 Pa.(Recommended)
  • Temperature:60°C
  • Humidity:100% RH
  • Test: 100% individually tested according to EN 1822.

    Product Overview

    • Available in efficiency classes H13 and H14
    • Individually tested.
    • High flow filters option for higher airflow.

    Typical Applications

    • Commercial Buildings
    • Data Centre’s
    • Food and Beverage
    • Healthcare
    • Industrial
    • Microelectronics
    • Pharmaceutical
