RS Pocket Filters

RS Pocket Filters – PB100+

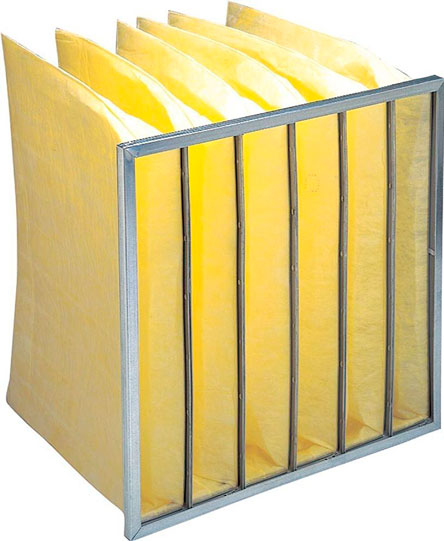

BAG FILTER (POLYSTER MEDIA) as medium to high efficiency extended surface self-supporting pocket (bag) filters made of super fine synthetic (polyester-melt blown) filter media. The progressive density multi-layered fiber arrangement offers excellent filtration performance combined with very high dust holding capacity.

RS – PB 100+ model with a unique aerodynamic design is also available for air intake application like gas turbines, AHU’s and spray painting plants.

  • Advantage:

    • Filter material of newly-developed plastic fiber media
    • Low initial pressure loss, flat development
    • Newly-developed seam technique for better air distribution
    • Conical pockets and self-supporting bags

    Molded, rigid and aerodynamically designed plastic front


    •  Filtration for fine particle in AHU & Ventilation System
    •  Type: Pocket Filter
    •  Case: Galvanized steel / ABS
    •  Media: Progressive structure Polyester media
    •  EN 779:2002 efficiency: F5 / F9
    •  Eurovent efficiency: EU5 / EU9
    •  Average arrestance 55 to 90 %
    •  Final pressure drop: 250 Pa.
    •  Temperature: 80°C maximum in continuous service.
    • Max. Relative Humidity 100% RH
